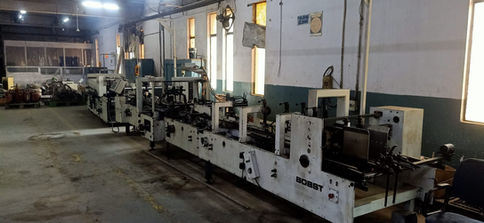

BOBST MEDIA 100 M1-A2 — 1998 Folder gluer 1998

Maximum blank width: approximately 1,000 mm (100 cm)

•

• Minimum blank width: around 120–130 mm

• Material weight range: 100 – 600 g/m² (solid board)

• Corrugated board capability: up to E-flute (depending on configuration)

• Maximum speed: up to 300 m/min

• Folding styles supported: straight line, crash-lock (auto-bottom), 4-point gluing (some with 6-corner module)

• Glue system: typically HHS cold-glue with 2–3 guns (varies by configuration)

• Machine modules and accessories (common for A2 models):

  • Feeder with vibration system

  • Pre-breaker (right and left)

  • Lock-bottom module

  • Upper and lower disc gluing units

  • Cube system memory (for preset box formats)

  • Delivery section with compression belt

• Power supply: 380 V, 3-phase (standard European industrial voltage)

• Estimated dimensions: approx. 12–13 m (length) × 1.5 m (width)

• Estimated weight: around 6,000–6,500 kg
